ASP9100 Ultra High Pressure Compressor ZY11-C WC Rod Plunger

    Buy cheap ASP9100 Ultra High Pressure Compressor ZY11-C WC Rod Plunger from wholesalers

    Buy cheap ASP9100 Ultra High Pressure Compressor ZY11-C WC Rod Plunger from wholesalers
    • Buy cheap ASP9100 Ultra High Pressure Compressor ZY11-C WC Rod Plunger from wholesalers
    • Buy cheap ASP9100 Ultra High Pressure Compressor ZY11-C WC Rod Plunger from wholesalers

    ASP9100 Ultra High Pressure Compressor ZY11-C WC Rod Plunger

    Ask Lasest Price
    Brand Name : ASEEDER
    Model Number : PN-720
    Certification : ISO,TDS,API, ASP9100
    Price : TBA
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 12000pcs per months
    Delivery Time : 30~45 working days
    • Product Details
    • Company Profile

    ASP9100 Ultra High Pressure Compressor ZY11-C WC Rod Plunger

    Ultra-High Pressure Compressor Rods and Plunger with Longer Service Life


    SEED are able to manufacturing many types of corrosion resistance and wear resistance pump plunger / plunger piston / frac plunger based on customer's drawing and material requirement, support hardfacing process , since most of our products are customized and not suitable to show for other customer, welcome to contact us for OEM service.


    Features:

    Both tungsten carbide Plunger or steel plunger with TC coating are available, processed and made with good raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.


    Applications :

    We are manufacturing the plunger based on customer's drawing and material requirement for difference industry application.


    SEED recommended tungsten carbide grade list as below, please contact us for more options

    GradeCo
    (Wt %)
    Density
    (g/cm3)
    Hardness (HRA)TRS
    (≥N/mm²)
    ZY11-C9.0-11.014.33-14.5388.6-90.22800
    ZY15-C15.5-16.013.84-14.0485.6-87.22800
    ZY15X14.7-15.313.85-14.15≥893000
    ZY2018.7-19.113.55-13.75≥83.82800
    ZY06X5.5-6.514.80-15.0591.5-93.52800
    ZY087.5-8.514.65-14.85≥89.52500
    ZY098.5-9.514.50-14.70≥892800
    ZY10X9.5-10.514.30-14.6090.5-92.53000

    Advantage::

    •  High stability, long lifespan circle.
    •  Customized as your requirements.
    •  Approved factory for oil and gas industry TOP10 customers.
    •  With ASP9100 certificate , API certificate, ISO9001:2015
    •  With a Special Thread Processing Workshop

    Package :

    Each unit will be packed based on product shap to protect the goods well during transportation.




    Major Product Lines

    · Wear resistant carbide components via powder metallurgy technique

    · Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

    · High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

    · Additive manufacture


    The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.

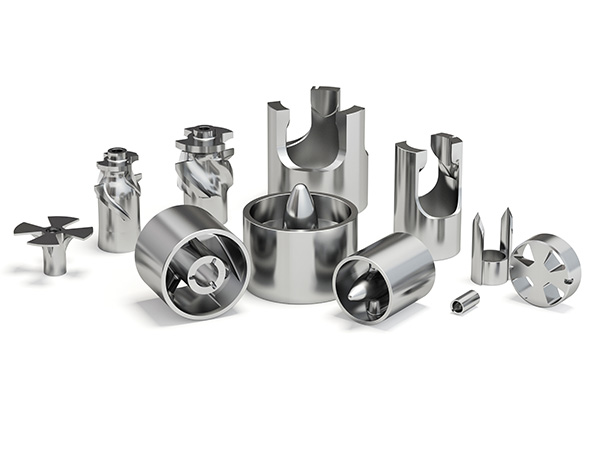

    Representative Products

    Chokes and valves trim parts
    Pumps seal rings
    Labyrinth product series
    Drill bit nozzles, inserts, cutters
    MWD parts, downhole tool components
    TC bearings, PDC thrust bearings
    Downhole flow control components
    Artificial lift pumps components
    Super hard product series
    Innovative hardfacing solutions
